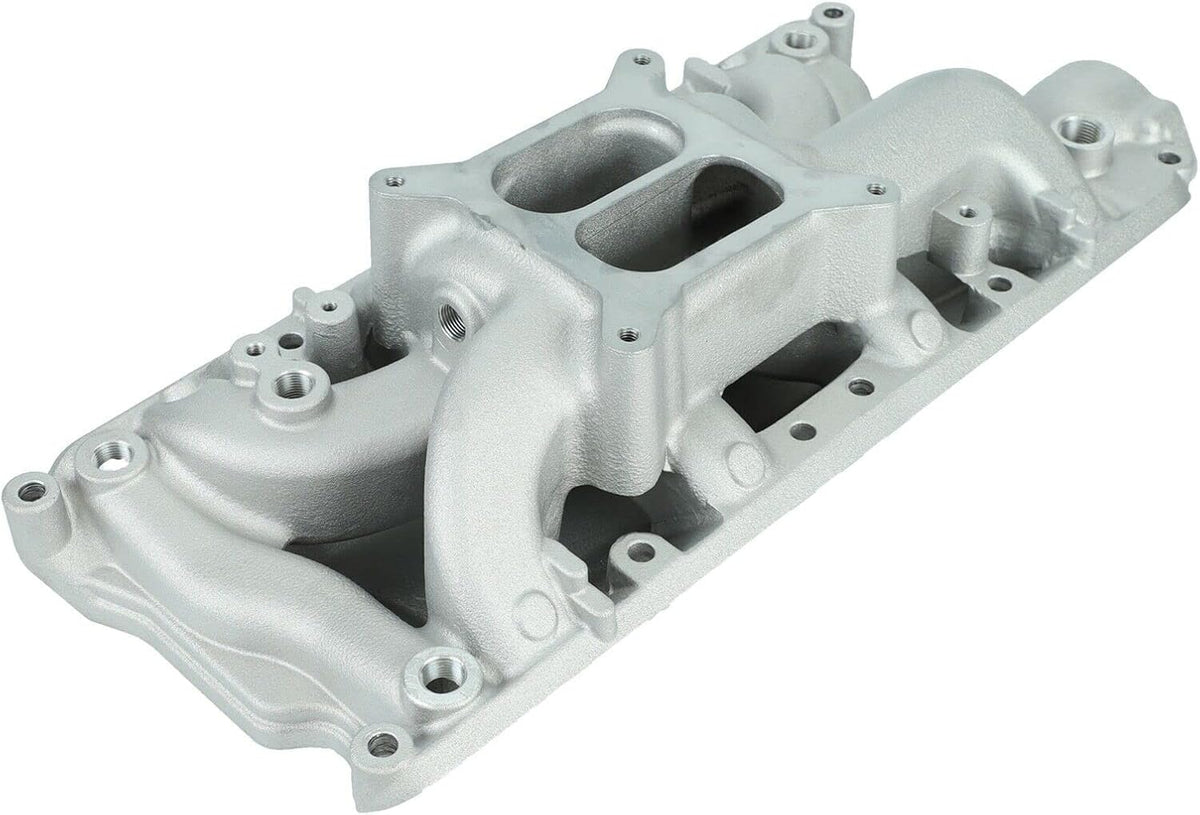

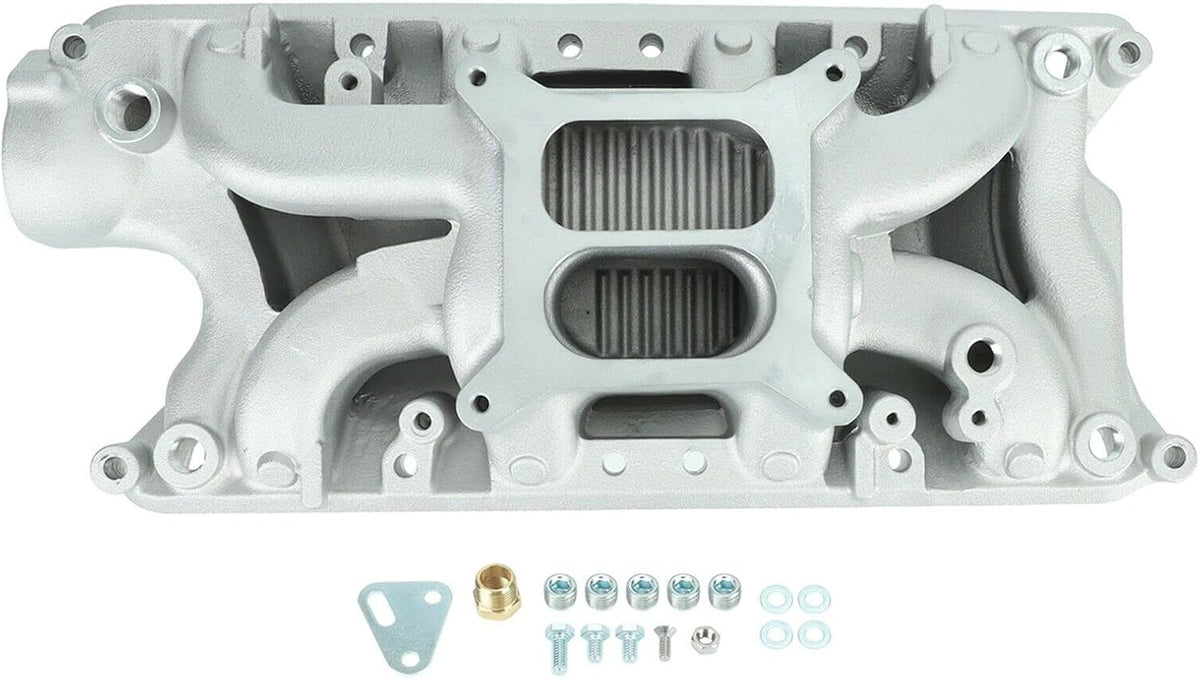

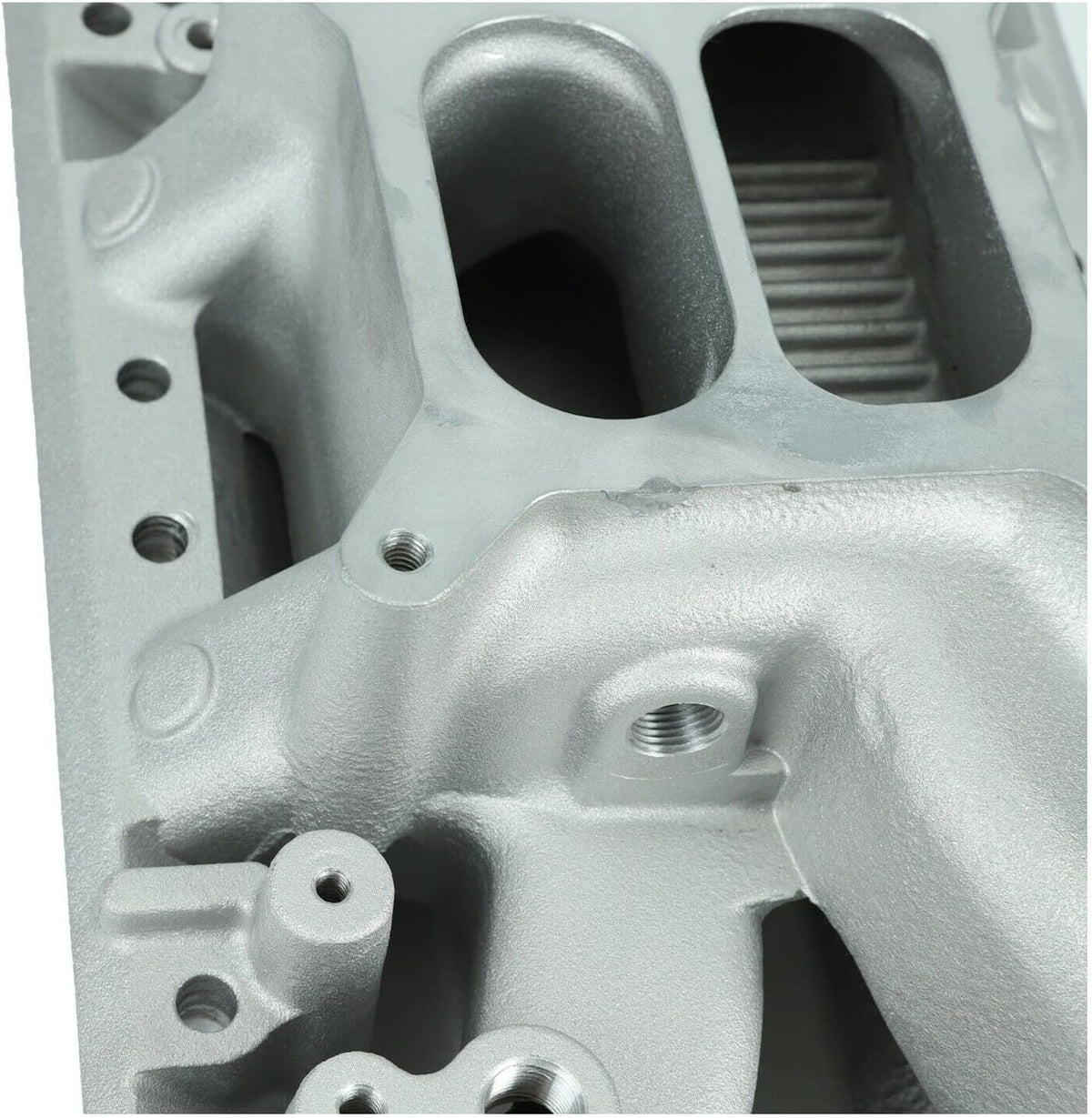

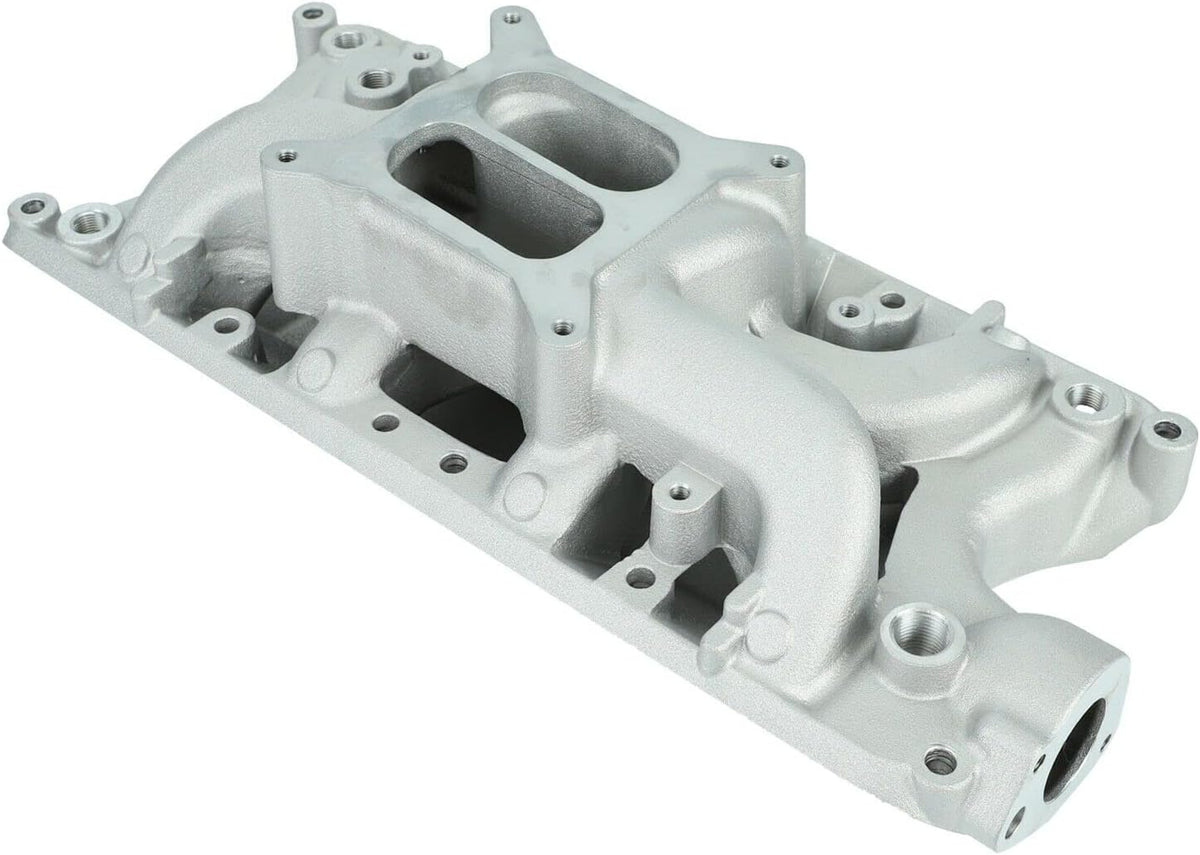

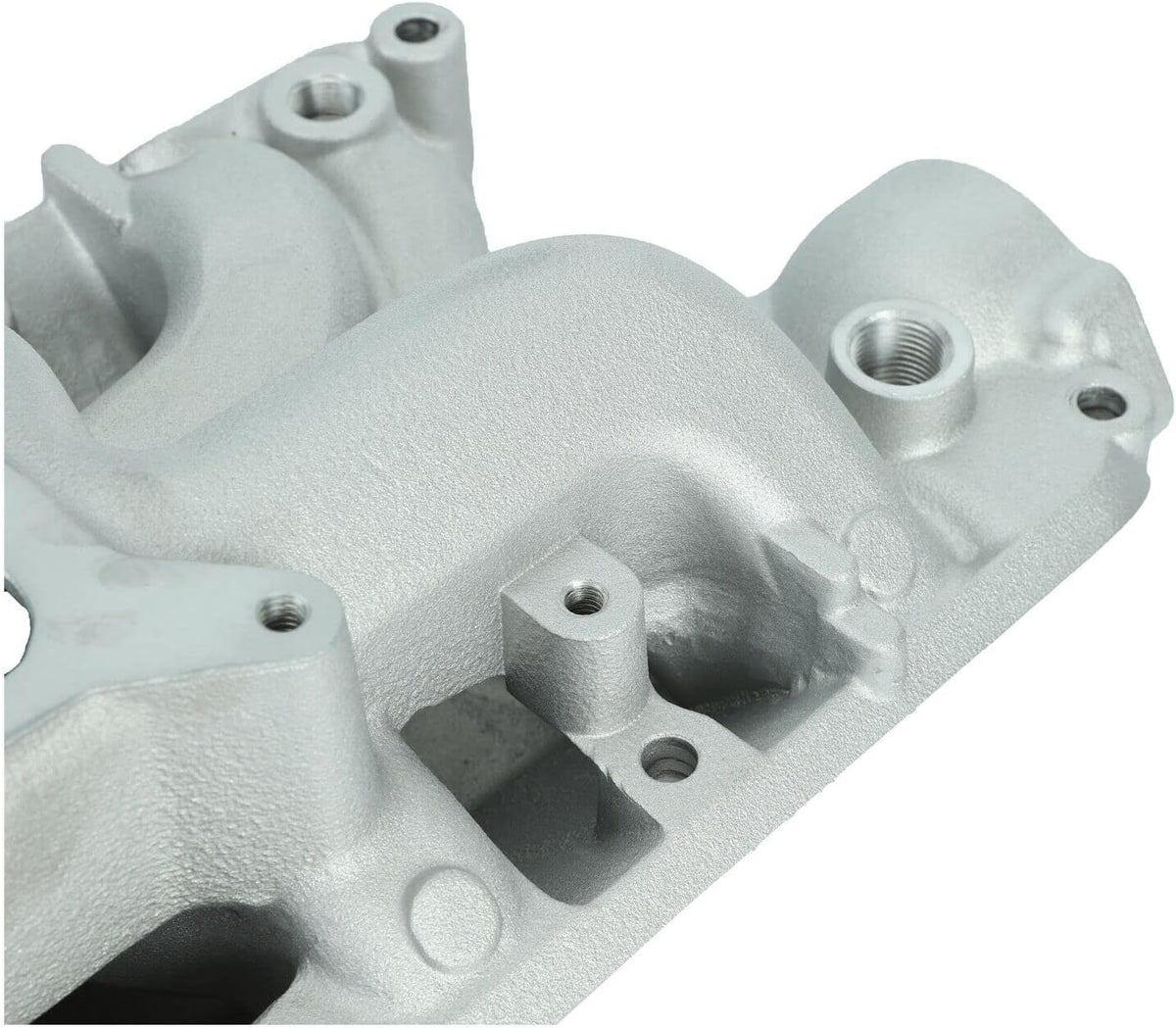

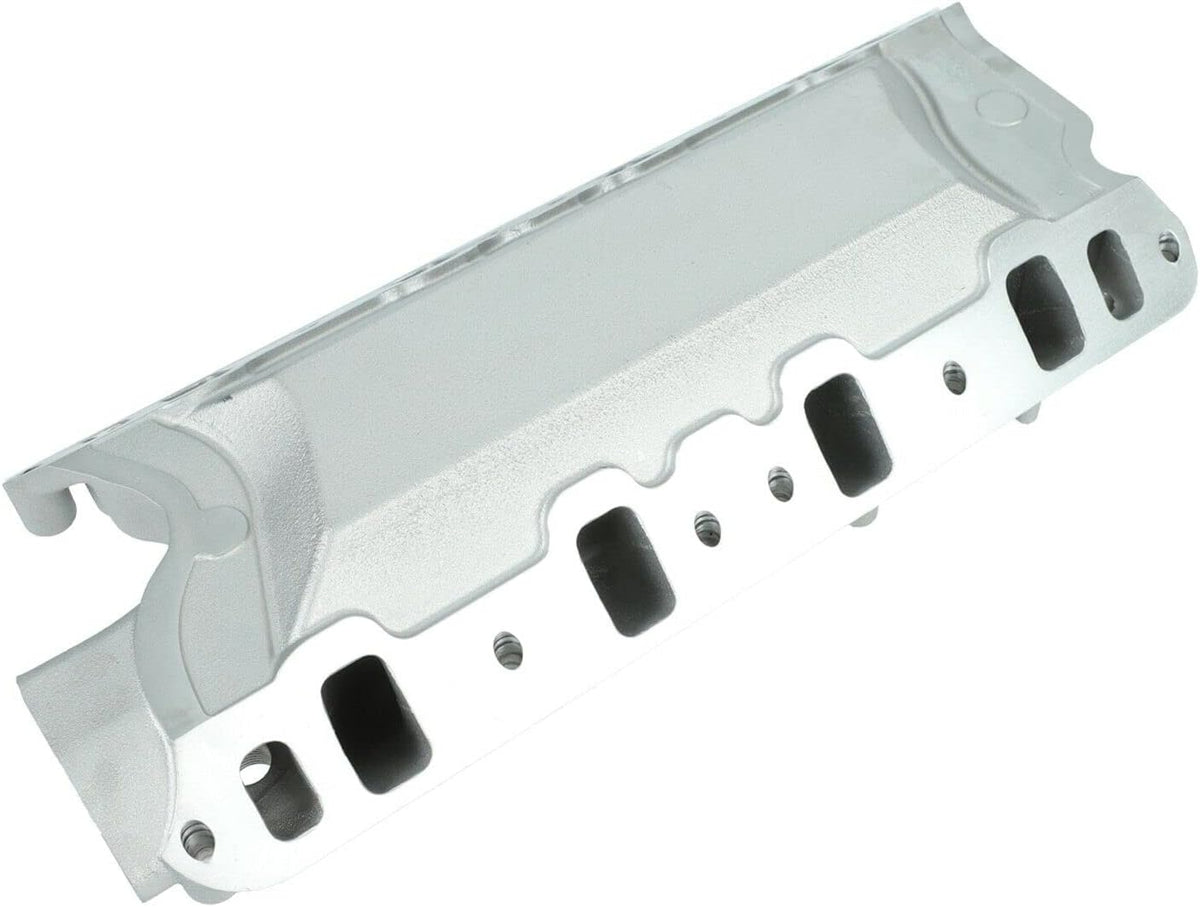

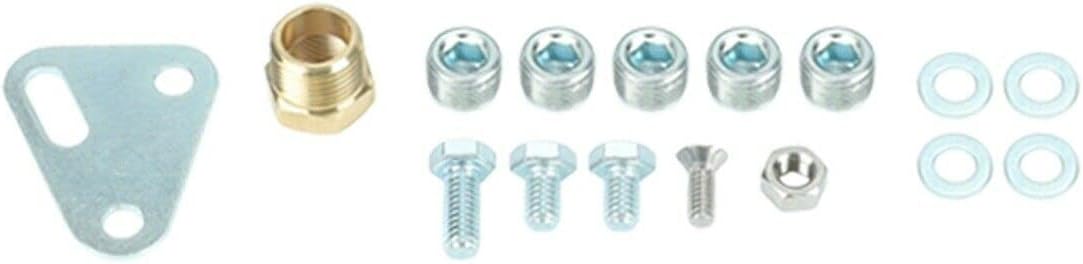

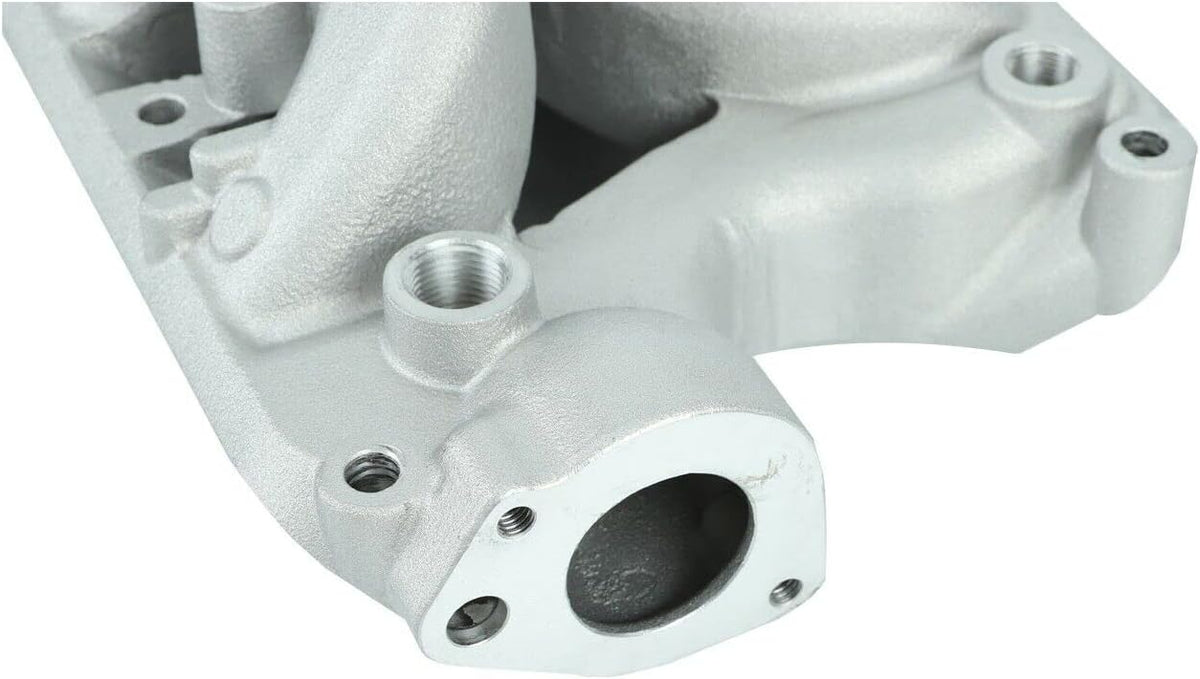

Satin Aluminum Intake Manifold B72023

For sale is a new aluminum dual plane intake for small block Ford 260, 289, and 302 (up to 2001) engines. 180° high rise design, big power over a wide RPM range. For use with square bore style carbs. No provision for exhaust heated choke or exhaust crossover. Not EGR equipped. This intake has the open air area under the carb pad to help keep fuel mixture cool and improve power. Ideal for everyday to high performance street applications, will produce power in the lower RPM range and not kill your bottom end like a single plane would. Description: Item is 100% New, Never used or installed. Intake Section Included: Complete Carburetor Quantity: One Intake Manifold Height: 4.120 in. Intake Finish: Natural Intake Material: Aluminum EGR: No Air Gap style - - 4.65" deck height 1.87" x 1.06" intake ports Dimensions 180° dual plane high rise design for outstanding power from 1500 to 6500 RPM Open air gap under plenum for cooler fuel charge Cast-in bosses on intake runners, can be drilled and tapped for use with nitrous or fuel injection Square bore carb bolt pattern for the Holley 4150/4160 style carburetor Ideal port position - allows custom porting for maximum power Bridged rear water crossover passage to equalize flow and help keep temperature lower Has 2 extra tapped water ports at back of intake Professional installation in highly recommended. No instruction included. Package including: 1 X SBF Intake Manifold As Shown in the Picture above.
